About PHOTOPiC

PHOTOPiC 是一款计算气体放电光电离参数的在线工具，用于识别主导光电离的气体、计算混合气体中各气体的光电离函数，并拟合高效光电离模型（Helmholtz）的参数，用于 PASSKEy 等各类低温等离子体数值模拟程序。内置 N₂、O₂、CO₂、H₂O 气体数据库，并支持用户自定义气体。模型理论来源于 S. Pancheshnyi 博士，由西安交通大学朱益飞教授团队与等离子体计算工坊开发维护。

PHOTOPiC is an online tool to calculate photo-ionization parameters for numerical simulation of plasma discharges. A database of N₂, O₂, CO₂, H₂O is incorporated, and custom gases can be added. It can (1) identify the dominant specie responsible for photo-ionization; (2) compute photo-ionization functions for every gas in the mixture; (3) fit parameters of efficient photo-ionization models. Algorithm based on Ref [1,2] and succeeded in [3].

[1] S. Pancheshnyi, "Photoionization produced by low-current discharges in O₂, air, N₂ and CO₂," Plasma Sources Sci. Technol. 24 (2015) 015023.

[2] A. Bourdon et al., "Efficient models for photoionization... three-group Helmholtz," Plasma Sources Sci. Technol. 16 (2007) 656.

[3] X. Chen, Y. Zhu, Y. Wu, J. Hao, X. Ma, and P. Lu, "Modeling of fast ionization waves in pure nitrogen at moderate pressure," Plasma Sources Sci. Technol. 30 (2021) 065002.

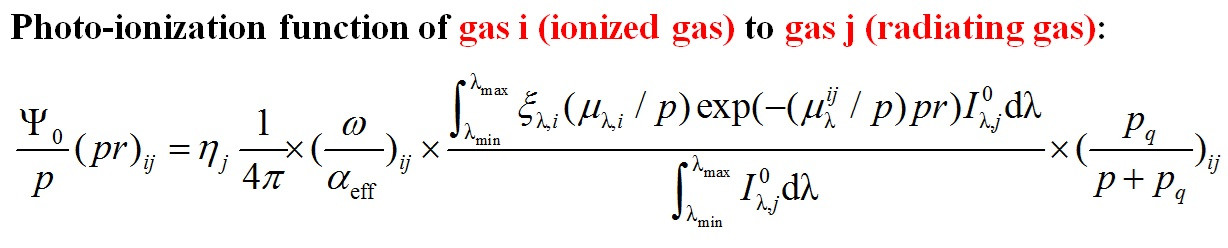

Photo-ionization function of gas i (ionized gas) to gas j (radiating gas)

Psi_0/p (pr)_ij = eta_j · (1/4π) · (ω/α_eff)_ij · [∫ ξ_λi (μ_λi/p) exp(−(μ_λ^ij/p) pr) I0_λj dλ] / [∫ I0_λj dλ] · (p_q/(p+p_q))_ij

Gas mixture & database

	Gas	Fraction (%)	λ_max (nm)	Data

Ticked fractions are normalised to 100% for the calculation. Σ active = 0%

Conditions & parameters

Live update

Temperature K ?

Pressure Torr ?

Pr range Torr·cm ?

–

Resolution points ?

Physics parameters ?

Cross-sections σ (m²)

Emission spectra I₀ (a.u.)

Ψ(pr) ≈ pr · Σ Aₘ·exp(−λₘ·pr)

term	Aₘ	λₘ

Fitted with the Nelder–Mead simplex method in log space. Use these parameters in your solver (e.g. PASSKEy) — see Userguide §2.5.

Fitted curve vs target Ψ(pr)

Parameter guide

Temperature T (K)

Gas temperature. Enters the absorption coefficient μ = σ_abs/(k_B·T). Default 298 K.

Pressure P (Torr)

Ambient (total) pressure — not the O₂ partial pressure. Scales absorption and quenching.

Reduced distance pr (Torr·cm)

Product of pressure and distance. The photo-ionization function Ψ is reported versus pr.

Cross-sections σ_ion, σ_abs

Photo-ionization and photo-absorption cross-sections per gas (×10⁻¹⁸ m² in the data files). Their ratio gives the ionization yield ν = σ_ion/σ_abs.

Emission spectrum I₀(λ)

Optical emission spectrum of the emitting gas over as wide a range as possible (nm).

λ_max (nm)

Upper integration limit = ionization threshold of the ionized gas (one value per gas).

λ_min (nm)

Lower integration limit, chosen so at least two spectral peaks fall in [λ_min, λ_max] for the emitting gas.

Scale factor ξ

Scales the absolute value (not the profile) of Ψ; relates to the radiative transition system. Set 1 for the classical (unscaled) formulation.

Quenching pressure p_q

Pressure correction p_q/(P+p_q) for collisional quenching of radiating states. Set very large for the low-pressure limit (factor→1).

Helmholtz Aₘ, λₘ

Coefficients of the three-term Helmholtz model fitted to Ψ(pr) for use in streamer/discharge solvers.

Note: cross-section abscissa is used on the same numeric axis as the nm integration limits, consistent with the original PHOTOPiC pipeline.
